- Webcode: 467414 • Mfr: PT20X4K-PRODUCER-SJOY
- FREE SHIPPING Available
Product Highlights
- 8.42 MP 1/1.8" CMOS Sensor
- Up To 3840 x 2160 Max. Resolution
- 0.5 Lux Min. Lux
- RJ45 / HDMI / USB 2.0 / 3G-SDI / BNC Connection
- 20x Optical Zoom
- Up To 16x Digital Zoom
- Aluminum / Plastic Material Construction
- 18W Max. Power
Option:
PTZ Optics Producer 20X MOVE 4K PTZ Camera Bundle
PTZ Optics Producer 20X MOVE 4K PTZ Camer...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $410.72 Learn More
Overview

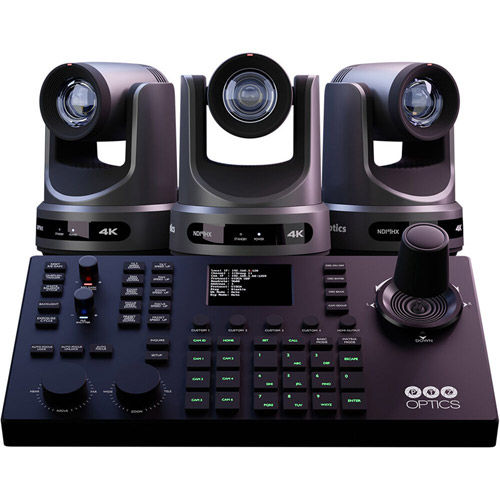

Producer 20x Move 4K PTZ Camera Bundle
Your Next Chapter in Video Production Begins Here

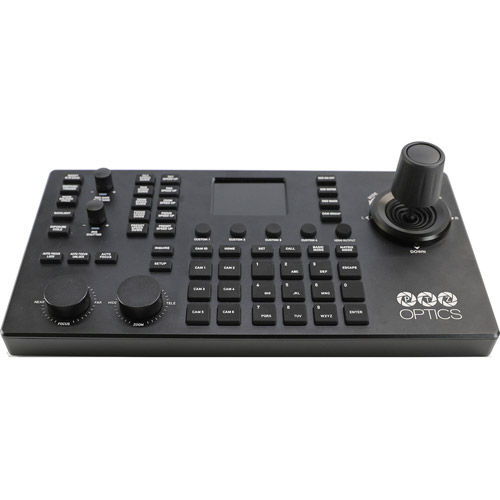

Dive into the PTZOptics Producer bundles, our easy to setup systems, tailored for every production aspiration. Choose from the 1080p resolution Producer SE or elevate your vision with the 4K-ready Producer 4K. Each bundle is 100% PoE-ready for easy setup and breakdown or permanent installation. Share your vision with a trio of 20X PTZ cameras, ensuring close-up shots even from afar, and control it all with a PT-JOY-G4 IP/serial-connected joystick controller or the SuperJoy joystick controller.
1080p Excellence: The Producer SE Bundle
With three award-winning 20X Move SE cameras, the Producer SE bundle delivers precision in every shot, even from a distance.
Enjoy the lifelike quality and clarity of 1080p clarity in every frame and convenient auto-tracking capabilities. Plus, streamline your setup process with the included PT-JOY-G4 IP/serial connected joystick controller. Seamlessly integrate, manage multiple settings, and enjoy intuitive control for a budget-friendly price. Offering an array of outputs, from SDI to HDMI, USB, NDI® HX2, and IP, Move SE cameras are the epitome of versatility and excellence.
Ultimate Precision: The Producer 4K Bundle

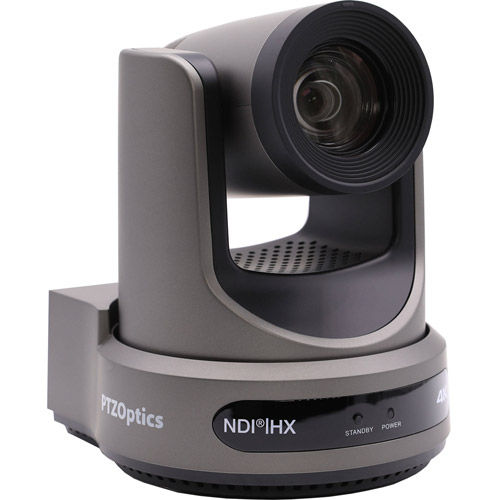

Capture every detail in ultra-high-definition 4K with 3 award-winning 20X Move 4K cameras. Each camera includes our most advanced auto-tracking capabilities and comes native with NDI® HX3 for unparalleled performance and versatility. Elevate your production control with the SuperJoy’s superior control features, setting a new standard in joystick operations. The fusion of 4K video clarity with the advanced SuperJoy controller offers unmatched video production prowess, meeting the demands of professionals seeking the best.
Reviews
Product Specifications
Producer 20x Move 4K PTZ Camera Bundle |
|
|---|---|
Image Sensor & Lens |
|
| Video Sensor | 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M |
| Lens | f = 6.25mm ~ 125mm, F1.58 ~ F3.95 |
| Lens (35mm Equivalencies) | 31mm ~ 589mm, F1.58 ~ F3.95 |
| Resolution and Frame Rate | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94 |
| Digital Zoom | Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144) |
| Field of View | 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
Pan/Tilt Movement |
|
| Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 |
| Tilt Speed | 1.7° ~ 69.9° |
| Presets | 255 Presets |
| Video Tracking | Supported |
| Image Flip, Mirror and Freeze | Supported |
Power Options |
|
| Power Supply | DC 12V / PoE (802.3at) |
| Input Power | 18W (Max) |
Physical Specifications |
|
| Material Construction | Aluminum, Plastic |
| Colour | Gray |
| Dimensions | 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm |
| Weight | 3.25 lbs (1.47 kg) |
| Working Environment | Indoor |
| Operating Environment | 14°F ~ 104°F (-10°C to 40°C) |
| Storage Temperature | -40°F ~ 140°F (-40°C to 60°C) |
Rear Board Connectors |
|
| HD Video Output | 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard 1x HDMI: version 2.0 1x USB 2.0: type A 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard |
| Audio Interface | 1x 3.5mm Line level Input |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P |
| Power Jack | JEITA type (DC IN 12V) |
| Network Interface | RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at) |
