Marshall Electronics 25X UHD IP (HEVC) PTZ Camera (White)

CV630-BI 25x UHD IP PTZ Camera

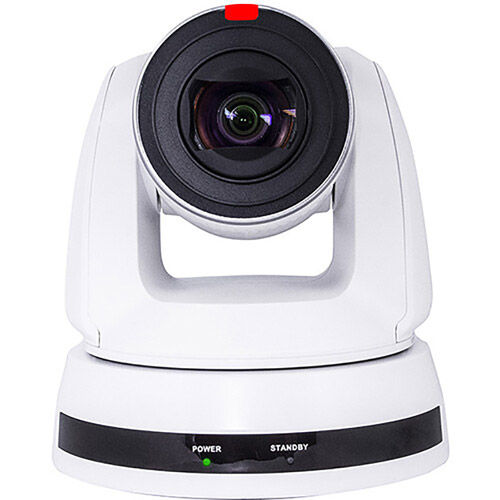

The Marshall CV630-BI and CV630-WI Cameras capture a crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile networked video solution.

High Performance Video Output

At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i.

Versatile Camera Positioning

The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

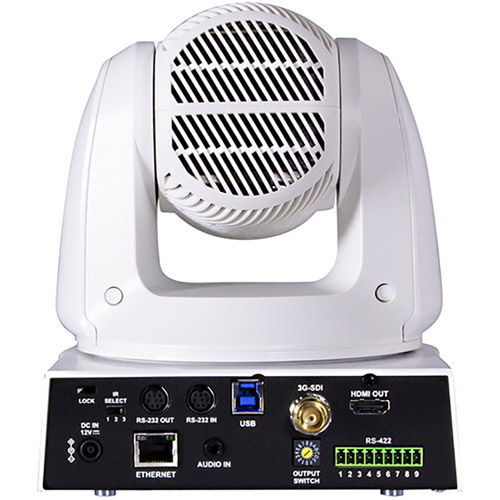

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
