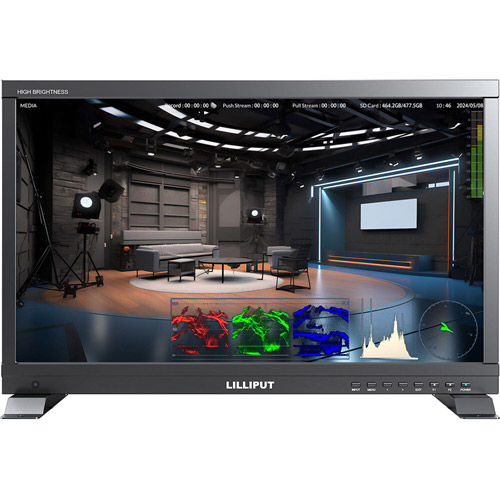

Lilliput PVM220S-E 21.5" Live Stream Recording Monitor with Carry Case (V-Mount)

21.5" 1000 nits Live Stream Recording Monitor

High brightness live streaming monitor with recording function. Application for video push/pull streaming & live streaming. LILLIPUT PVM220S-E is a professional high brightness broadcast monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.

Compatible with a multitude of inputs – the PVM220S-E features 3G SDI and HDMI 2.0 input connections for broadcast quality monitoring. Adding value to the system, it also features accurate waveform and vector functions - which can provide strong support for capturing accurately the color of your images. As a recording product, it can also digitally record any input HDMI or SDI video signal and save it to an SD card. The recorded video supports up to 1080p resolution, in .mkv format.

Recording Function

When setting the format of the recorded video, users can choose from Bitrate, Encoding, Resolution, FPS and other options.

Record playback

When the video recording is completed, uses can select video playback in the menu.

RECORD With SD Card

Video recording via SD card, supports overwriting function when recording.

Push Stream to 3 Platforms

Supports to push stream to 3 different live streaming platforms at the same time.

LAN

For PC or Router Connecting

Make sure the network is smooth and connect the push address of the live stream platform to share your unique ideas.

USB Upload

For Push/Pull Stream Address

Create a text file to the USB flash drive to upload the push/pull stream address.

Pull Stream From Network

Uploading the pull streaming address from the USB flash drive and show the creative ideas through the network.

HDR

SUPPORT ST2084 300/1000/10000/HLG

Making lighter and darker details to be displayed more clearly. Under 1000 nits brightness, it can show the effect of 1 + 1 >= 2

1000 Nits

For Daytime With Strong Sunlight

The high brightness screen makes it possible to see the image clearly even when it is exposed to sunlight.

3D-LUT

Import LUT tables via USB to dye your scenes with different colors. It can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

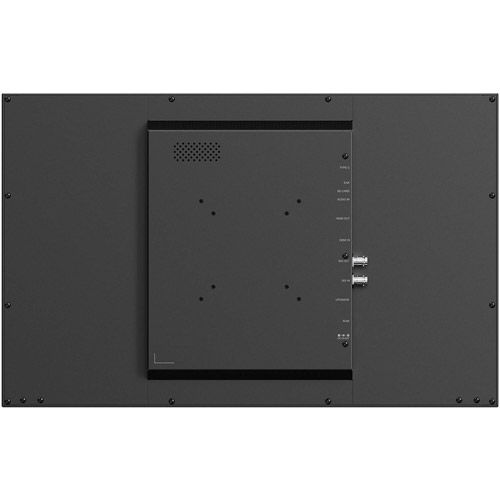

Interfaces & Battery Plate

The back of broadcast monitor is equipped with VESA 75mm/100mm installation options, which is compatible with the installation of most light stands and battery plates. The battery plate can be selected from V-lock battery plate and Anton Bauer battery plate.
