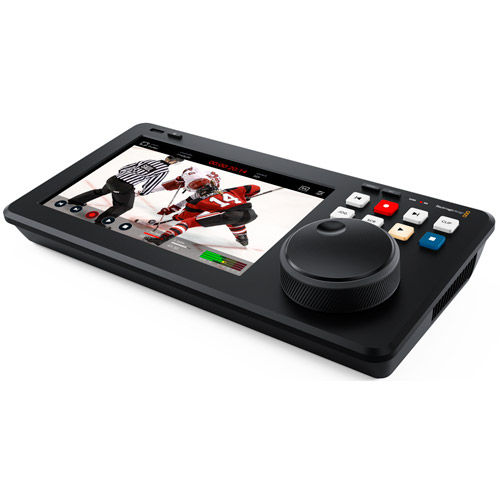

Blackmagic Design HyperDeck Shuttle 4K Pro 2TB

HyperDeck Shuttle 4K Pro 2TB

The desktop HyperDeck that's the perfect live production clip player

The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage. Powerful touchscreen model records to H.265, ProRes and DNx in all SD, HD and Ultra HD standards up to 2160p60. Includes 10G Ethernet, scopes, internal network storage, 12G-SDI and HDMI connections. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.

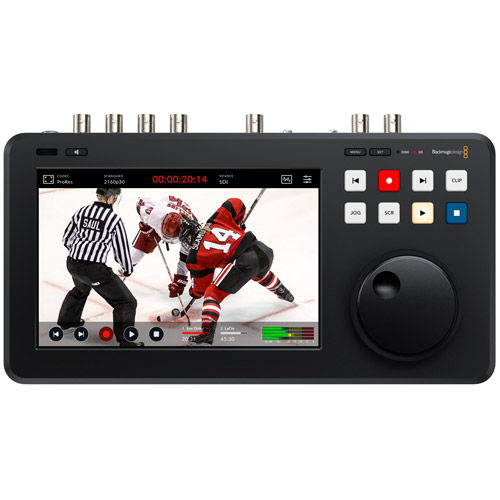

Built in 7" Monitor for Fast Touch Control

The HyperDeck Shuttle 4K Pro model features an innovative touch LCD user interface for interactive control, built-in monitoring, and menu settings. The large 7-inch HDR display has buttons for playback, pause and recording functions, as well as a mini playback timeline so you can scroll through your clips. A "HUD", or heads-up display, is included that overlays important information such as timecode, media status, and audio meters. You can also enable full broadcast scopes via the touch screen, and enable features such as focus assist and an RGB exposure histogram. The HyperDeck Shuttle 4K Pro's settings can also be changed through the on-screen menus. Plus you can load and save 3D LUTs.

Record to Internal or External Network Storage

HyperDeck Shuttle 4K Pro model has space for M.2 flash storage cards, so the network storage is built in. This means any editing system can just log into the HyperDeck Shuttle 4K Pro and access all the media in one location. The HyperDeck Shuttle 4K Pro model also handles H.265 record and playback. You get tight 60:1 to 285:1 compression ratios for small files at full broadcast quality.

Latest Multi-Rate 12G-SDI for SD, HD and Ultra HD

The extremely advanced HyperDeck Shuttle 4K Pro model includes the latest 12G-SDI video connections. 12G-SDI is multi-rate, so a single connection can connect to SD, HD, and Ultra HD equipment. HyperDeck Shuttle 4K Pro even handles 1080 PsF formats.

HDMI is Perfect for ATEM Mini Switchers

The HyperDeck Shuttle 4K Pro model standards include 2160p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p.

The Fastest Networking with Modern 10G Ethernet

The more powerful HyperDeck Shuttle 4K Pro model has extremely fast 10G Ethernet. The network speeds are so fast that lots of editors and colorists can access the built-in HyperDeck M.2 storage over your network, all at the same time. You can also transfer files via an easy to use HTTP/S web interface or an FTP client. For broadcast automation control, HyperDeck uses the Ethernet connection and a simple text-based protocol, which you can test with a simple telnet client. A REST protocol is also supported for custom automation and it's fully documented in the manual. This means HyperDeck Shuttle 4K Pro is a fully self-contained broadcast server for ingest, media management, and play out.

Advanced HDR Support and Bright Wide Gamut LCD

You will be prepared for the latest HDR workflows with the HyperDeck Shuttle 4K Pro model's support for the latest HDR video standards because it has an HDR screen with a wide color gamut. Even the built-in scopes automatically transition to HDR scopes when working with HDR formats. Files are tagged with the correct HDR information then SDI and HDMI inputs will also automatically detect HDR video standards. Static metadata PQ and HLG formats are handled according to the ST2084 standard. The bright LCD has a wider color gamut so can handle both Rec. 2020 and Rec. 709 colorspaces. The built in HyperDeck Shuttle 4K Pro LCD color gamut can even handle 100% of the DCI‑P3 format.

Built In Scopes Ensure Compliance to Broadcast Standards

The HyperDeck Shuttle 4K Pro offers powerful built-in waveform monitoring for high end work, ensuring compliance with broadcast standards. The waveform display provides a traditional luminance (brightness) level view of your input or playback signal. The vectorscope display allows you to see the intensity of color at 100% SDI reference levels. You also get RGB and YUV parade displays which are ideal for color correction and checking for illegal levels. Histogram shows the distribution of white to black detail in your images and highlights or shadows clipping. The built-in scopes can be overlayed on live video or displayed as a small picture-in-picture view at the top right of the scope.

Supports Blackmagic Cloud for Global Media Sync

HyperDeck Shuttle 4K Pro supports adding a built-in M.2 flash memory storage card, transforming it into network storage. That means multiple users can access recordings over the local network, plus it can sync to Blackmagic Cloud! DaVinci Resolve will also sync the media so you can work with editors, colorists, VFX artists and audio engineers anywhere in the world. It's an easy to use global collaborative workflow. HyperDeck Shuttle 4K Pro also records H.265 HD proxy files, which upload in seconds. The proxy even syncs during recording, so remote DaVinci Resolve editors get the media before the HyperDeck has stopped recording! Blackmagic Cloud is also an excellent media backup solution.

Direct Metadata Entry for Faster Editing

The HyperDeck Shuttle 4K Pro model has an advanced digital slate and metadata features that make it extremely fast to add metadata to any shot. Simply swipe left or right from the edge of the screen to bring up the digital slate.

Includes the Power of Blackmagic OS

Functions on the HyperDeck Shuttle 4K Pro, they are displayed on the built-in touch screen. The menus can be displayed in either light or dark mode.
