- Webcode: 480248 • Mfr: 7055C002
Product Highlights
- 24" Max. Print Size
- 20-30 cm (8-12") Max. Print Width
- 2400 x 1200 dpi Max. Resolution
- Four Colour Pigment Ink System
- Hi-Speed USB / Wi-Fi / Wired LAN Connectivity
- 2.7” Touchscreen LCD Screen
Option:
Canon imagePROGRAF TC-21 24" Large Format Printer
Canon imagePROGRAF TC-21 24" Large F...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Overview

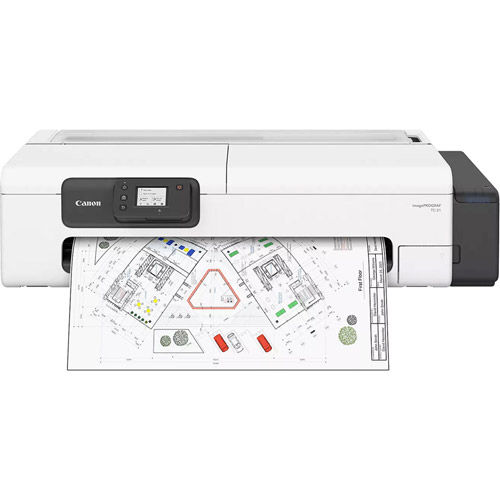

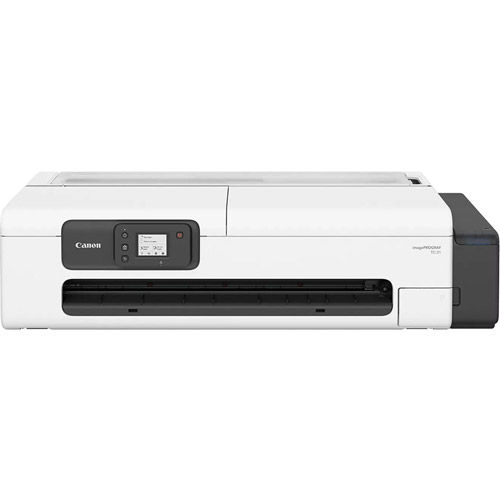

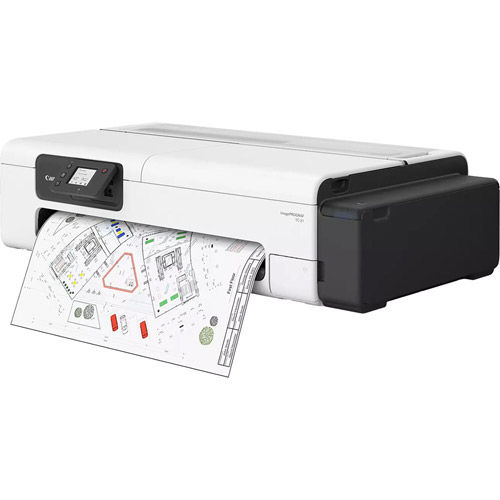

imagePROGRAF TC-21 24" Large Format Printer
The Canon imagePROGRAF TC-21 printer is designed to provide the versatility that users need to create high-quality posters, banners, CAD drawings, labels, and more. Ideal for education, home offices, grocery stores, healthcare, architectural, construction environments, and more, this all-around and versatile large format printer can print on compatible roll media up to 24” wide or print labels or letter to A1 sizes from the auto sheet feeder. It gives the ability to quickly make prints from a USB drive via the USB drive port. With the inclusion of 280 ml of ink—70 ml per ink bottle—the TC-21 sets itself apart by offering the largest ink capacity in its class, providing users the ability to print more without frequent refills.
Key Features:
- USB FLASH DRIVE PORT: Easily print in large format by just inserting a USB Flash Drive.
- 2.7” TOUCHSCREEN LCD: Get the job done with an easy to use tiltable 2.7” touchscreen LCD.
- CLOUD PRINTING: Easily print from the cloud directly from the printer.
- AUTO SHEET FEEDER: Automatically load up to 100 sheets of letter size paper or up to 50 sheets of 11” x 17” paper for greater print flexibility.
- MEDIA HANDLING: From roll-fed to cut-sheet paper, you get the versatility to print 24”-wide output as well as letter, 11” x 17”, and more.
Additional Features:
- EASY TO FILL: Ink bottles are keyed so they only fit and fill the intended colour ink tank. The design helps to create a spill-free process that makes re-filling a breeze.
- PRINT MORE: The imagePROGRAF TC-21 ships with 280 ml of ink — 70 ml per ink bottle—the most in its class.
- EXCELLENT PRINT QUALITY: The four-colour pigment ink system provides the ability to create crisp text and vibrant graphics.
- POSTERARTIST ONLINE VERSION: Easily create posters and flyers from a free, web-based, template-driven poster creation application.
What's Included
imagePROGRAF TC-21US AC Power Cable
Maintenance Cartridge (Installed)
Print Head
4x Ink Tanks (70 ml each: BK/C/M/Y)
Reviews
Product Specifications
imagePROGRAF TC-21 24" Large Format Printer |
|
|---|---|
|
|
|
| Print Head |
PF-08 |
| Technology |
FINE (Photolithography Inkjet Nozzle Engineering) |
| Print Resolution (Max.) |
2400 x 1200 dpi |
| Line Accuracy |
±0.1% or Less |
| Number of Nozzles |
Black: 1,280 Nozzles |
| Ink Type Pigment |
Cyan (C), Magenta (M), Yellow (Y), Black (BK) |
| Ink Bottle |
Shipped with Printer: C, M, Y, BK, (70 ml per bottle) |
| Ink Supply Method |
Tubing System |
| Printer RAM |
1 GB |
| Media Feed |
Roll Feed: One Roll, Top-Loading, Front Output |
| Media Width |
Roll Feed: 12” - 24” |
| Printable Margins |
Roll Feed: All Sides: 0.2” (5 mm); |
| Media Cutter |
Rotary Cutter |
| Media Thickness |
0.08 mm – 0.28 mm |
| Media Core Size |
Internal Diameter of Roll Core: 2” |
| Maximum Roll Outer Diameter |
4.3” (110 mm) |
| Printing Software Utilities |
imagePROGRAF Printer Driver for Windows3/Mac4, Apple AirPrint5, Mopria® Print Service, Direct Print Plus, Canon PRINT app6, Cloud Integration Service, Free Layout Plus, PosterArtist Online Version, Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, and Printer Update Utility |
| Operating System |
32-bit: Windows 7/8.1/10 |
| Mobile Operating Systems |
iOS, Android, Chromebook Compatible |
| Print Language |
SGRaster |
Connectivity & Software/Apps |
|
| Interface |
Standard (Built-in): Hi-Speed USB, Wi-Fi (Wireless LAN, 2.4/5 GHz, IEEE 802.11b/g/n), Wired LAN (100BASE-TX)/(10BASE-T) |
| Display |
2.7” Touchscreen LCD Display |
| Acoustic Noise |
Operation: 41.5 dB (A) |
| Power Supply |
AC 100 – 240V (50 - 60 Hz) |
| Power Consumption |
Maximum: 28 W or Less |
| Certifications |
ENERGY STAR Certified |
| Operating Environment |
Temperature: 15° – 30° C (59° – 86° F) |
| Printer Dimensions (W x D x H) and Weight |
ASF Opened: 968mm x 533mm x 245mm (38.1” x 21” x 9.6”) |
| Options |
Desktop Basket (BU-06) User-Replaceable Items: Ink Bottle: PFI-050 (70 ml)Print Head: PF-08 Maintenance Cartridge: MC-32 |
| Compatible Inks |
PFI-050 BK: Black Ink Bottle |
