- Webcode: 484825 • Mfr: ZOOM-ZL6MAX
- FREE SHIPPING Available
Product Highlights
- 14 Tracks
- 20 Hz – 20 kHz Frequency Response
- 4x MIC/LINE (mono) / 4x LINE (stereo) Inputs
- 2x AUX SEND (mono) / MASTER (stereo) / MONITOR (stereo) / SUB OUT (Stereo) Outputs
- 4 XLR/TRS Combo Jack Connection
- 5 W Max. Power

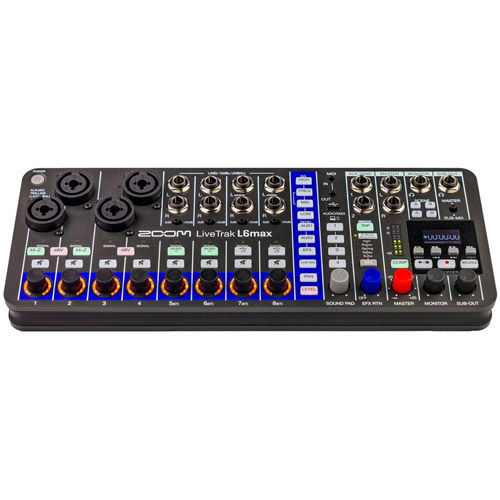

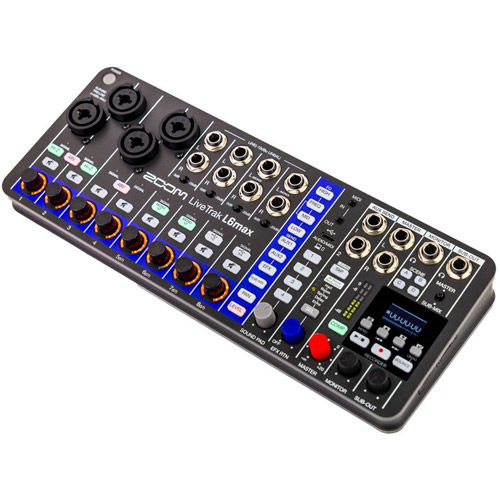

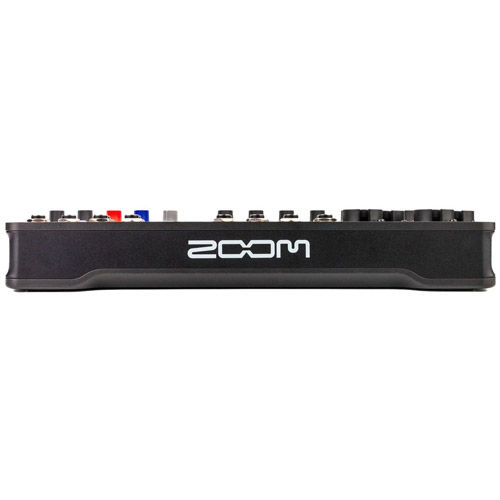

Zoom LiveTrak L6 Max , 12-Channel Digital Mixer/ Recorder
Zoom LiveTrak L6 Max , 12-Channel D...- Toronto On Order
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
Overview
LiveTrak L6max
12-Channel Mixer & Recorder for Music, Streaming, and Podcast
Big Mixer Energy
The LiveTrakL6max is packed with all the features you’d expect from a full-sizemixer, plus a multi-track recorder. It’s compact, battery powered, and ready to bethe centerpiece of your live show, rehearsal or podcast.
Small Enough for a Duo, Big Enough for a Band
Whether you are a full-band, an acoustic duo or a solo performer, the L6max isready. With 4 combo inputs (including 2 with Hi-Z) and 8 line inputs, its 12channels offer the flexibility you need for any session.
Custom Monitoring Options
Two headphone outputs with one customizable Sub-Out mix let you monitorexactly what you need, wherever you are on stage.
High Output Ready
Channels 5–8 include a-20 dB PAD switch so you can handle loud sources suchas vintage synths and Eurorack modules. No attenuator required.
OLED Display
The high-contrast OLED display helps you create projects and adjust settingswith ease.
Power Multi-Tracking
14 Tracks of Recording
Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB.Projects can be saved and recalled for mixing anytime.
Unlimited Overdubbing
You can mix and bounce tracks to the dedicated ‘bouncetrack’’ freeing up additionalchannels to keep adding layers. If the bounce doesn’t hit the mark, ‘undo’ it and tryagain. Even after a bounce Individual files are saved to the SD card for future mixing.
AI Noise Reduction
Turn on AI Noise Reduction and let the L6max intelligently remove hum, hiss,and background noise-while preserving every detail of your voice andinstruments.
Let’s Get Loud
For huge drums and loud guitar solos, the L6max records clip-free audio in32-bitfloat. Channels 1-4 have dual-AD converters, keeping mic signals pristine acrossextreme dynamics.
3-Band EQ for Every Channel
Dial in the perfect tone with LOW, HIGH, and MID EQ on each channel.
Onboard Effects
Build the perfect mix with onboard effects including Reverb, Delay, and Echo.Use the TAP key to set delay times.
Advanced Compressor
The master track compressor adds punch and saturation to your mix. With 32-bitfloat the audio will never clip, even at high volumes.
Easily Record with your Smartphone or Computer
The L6Max can be used as a 32-bit float 12-in / 4-out USB audio interface foryour computer, iOS, or Android device while recording simultaneously to themicroSD card. It’s also a control surface for your favorite DAW.
Pro-Level Mixer Functions
Flexible Routing with AUX Sends
Two AUX Sends with pre/post-fader options for FX loops and monitor feeds.
Scene Memory
Store up to four mixes and recall them anytime with a single button.
Sound Pads with MIDI Sync
Trigger jingles, sound effects, or samples on demand. Sound Pads can even sync to a MIDI clock for live electronic performances.
MIDI I/O and USB MIDI
Connect external synths and grooveboxes or integrate with MIDI apps on your computerand mobile devices.
Customize with the L6 Editor App
The free L6 Editor app for Mac and Windows lets you customize pads, effects,and MIDI assignments with ease.
Stay Powered, Stay Mobile
Power the L6max via AA batteries, USB bus power, or a mobile battery pack.
Euro Rack Integration
The L6max is mountable to a standard Eurorack case using the optional ERL-6rack ears and power supply.
Reviews
Product Specifications
LiveTrak L6max |
|
|---|---|
| Inputs | MIC/LINE (mono) 4 LINE (stereo) 4 |
| Outputs | AUX SEND (mono) 2 MASTER (stereo) 1 MONITOR (stereo) 1 SUB OUT (Stereo) 1 |
Inputs |
|
| MIC/Line | Connectors 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain Adjustment unnecessary (dual A/D converter circuits used) Input impedance XLR: 3.8 kΩ or more TRS: 18 kΩ or more (when Hi-Z off) / 1 MΩ or more (when Hi-Z on) Maximum input level XLR: +4 dBu TRS: +24 dBu MIC/LINE Phantom power +48 V Channel total 20 mA or less |
| LINE | Connectors: 8 TS phone jacks Input impedance: 30 kΩ or more Maximum input level: +4 dBu (when PAD is 0 dB) +24 dBu (when PAD is -20 dB) |
Outputs |
|
| Aux Send | Connectors 2 TRS phone jacks (impedance balanced) Maximum output level +9.5 dBu Output impedance 147 Ω |
| Master | Connectors: 2 TRS phone jacks (balanced) Maximum output level +15 dBu Output impedance 147 Ω |
| Monitor / Sub Out | Connector TRS phone jack Maximum output level 50 mW + 50 mW (63 Ω load) Output impedance 14.7 Ω |
Buses |
|
| Master | 1 |
| Sub Mix | 1 |
| Aux Send | 2 |
| Send EFX | 1 |
Channel Strip |
|
| EQ | HIGH 10 kHz, ±15 dB, shelving MID 100 Hz – 8 kHz, ±15 dB, peaking LOW 100 Hz, ±15 dB, shelving |
| Level Meters | 6 segments |
| Send Effects | 6 types |
Recorder |
|
| Maximum simultaneous recording tracks | 14 |
| Maximum simultaneous playback tracks | 14 |
| Recording formats | 48kHz, 32-bit float, mono/stereo WAV |
| Recording Media | microSDHC memory cards (Class 10 or higher) microSDXC memory cards (Class 10 or higher) |
| Display | 124 x 68 OLED |
| Audio Interface | Numbers of inputs and outputs Input: 14 channels Output: 4 channels Sampling frequency 48 kHz Bit depth 32-bit float / 24-bit Audio interface Interface USB 2.0 |
| Card Reader | Class Mass storage class USB 2.0 High Speed |
| Sampling Frequency | 48 kHz |
| Frequency Response | 20 Hz – 20 kHz, −1.0 dB / +0.5 dB |
| Equivalent Input Noise | –120 dBu or less (IHF-A) at 150Ω input |
| Power | 4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-17): DC 5V/1A • USB bus power is supported |
| Power Consumption | 5 W maximum |
| Dimensions | 284 mm (W) × 114 mm (D) × 46.5 mm (H) |
| Weight | 673 g (23.7 oz) |
