- Webcode: 487186 • Mfr: UQ23-ABBP
Product Highlights
- 23.8" Screen Size
- 3840 x 2160 Max. Resolution
- 1200 nits Brightness
- 12G-SDI / HDMI Input
- LCD Display
- Gold Mount
Kit Options:

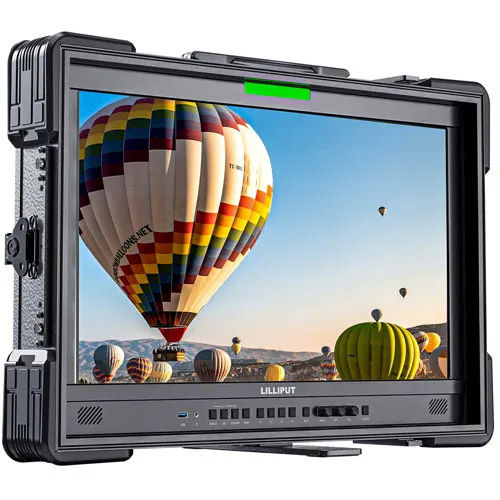

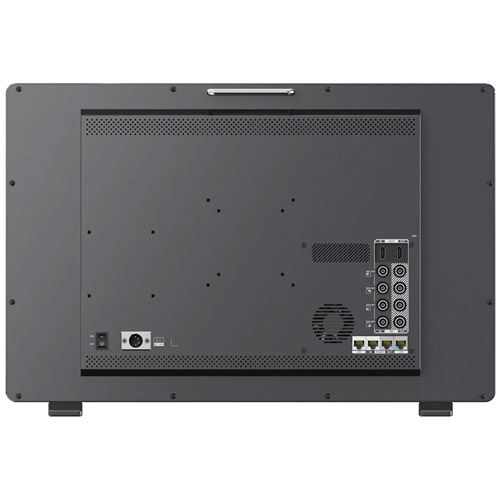

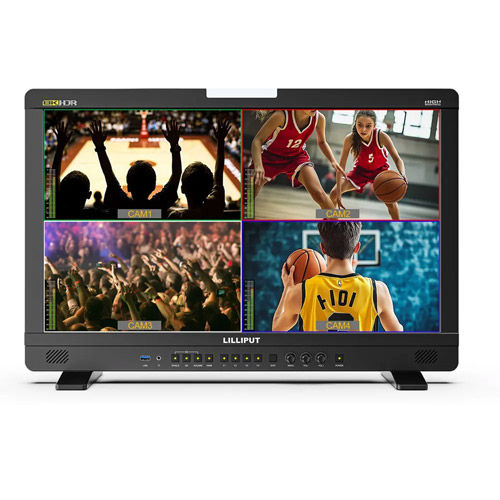

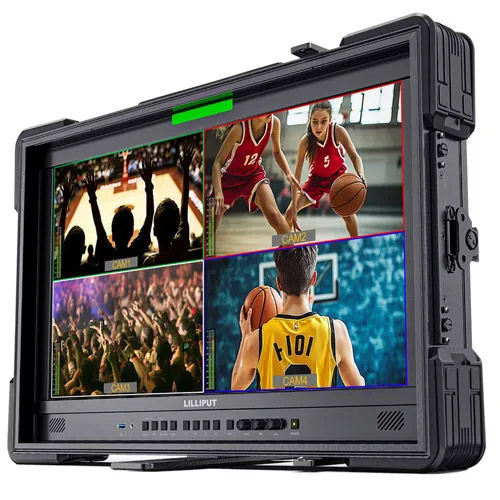

Lilliput UQ23 23.8" High-Brightness Studio Production Monitor
Lilliput UQ23 23.8" High-Brightness Stu...
$4,179.00
Add to Cart
Web Availability:
Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
Lease this for: $160.06 Learn More
Overview
UQ23 | 23.8" 1200Nits Portable Production Monitor
The 4K 23.8 Inches 1200 nits high brightness Production Monitor, feature with 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. UQ23 also have a portable rugged suitcase for outdoor filmmaking.
Key Features:
- All-New-UI

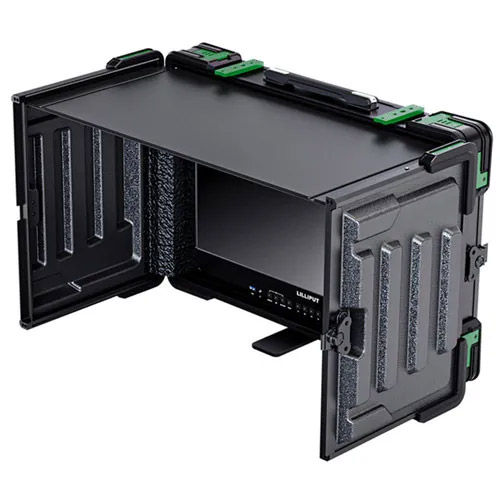

- All-New-Rugged Suitcase(Optional)
- HDMI 2.1 Direct 8K Support
- Quad Link 12G-SDI 8K Support
- Remote Application Control
- Quad-Split Multiview
Reviews
Product Specifications
UQ23 23.8" Portable Production Monitor |
|
|---|---|
Display |
|
| Aspect Ratio | 16:9 |
| Brightness | 1200cdm² |
| Colour Space | Calibrate Colour Space to Rec. 709, DCI-P3, NTSC, BT.2020 |
| Display Screen | 23.8" 10 Bit (8+2) |
| Look Up Table Support | 3D LUT (.cube format) |
| Resolution | 3840 x 2160 |
| Viewing Angle | 178° / 178° |
| HDR | ST2084 300 / 1000 / 10000 / HLG |
| Supported Log Formats | SLog 2 / SLog 3 / CLog / NLog / ArriLog/ JLog / User |
Remote Control |
|
| GPI | 1 |
| LAN | 1 |
| RS422 | In / Out |
Supported Formats |
|
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
Audio In / Out |
|
| Built In Speakers | 2x |
| Ear Jack | 3.5mm |
| HDMI Audio Frequency | 8 Ch / 24 Bit |
| SDI Audio Frequency | 16 Ch / 48KHz / 24-Bit |
Inputs |
|
| HDMI Inputs | 1x HDMI 2.1 (Supports 8K Formats) |
| SFP Input | 1x 12G SFP+ (Optional Extra Purchase) |
| SDI Video Inputs | 4x 12G (Supported 8K-SDI Formats Quad-Link |
Outputs |
|
| HDMI Video Outputs | 1x HDMI 2.1 (Supports 8K Formats) |
| SDI Video Outputs | 4X 12G-SDI |
Size |
|
| Dimensions | 576.6mm x 375.5m,m x 53.5mm / 632.4 x 431.3mm x 171mm (with Case) |
| Weight | 7.7kg / 17.8kg |
Power |
|
| Input Voltage | DC 15-24V |
| Power Consumption | <= 90W (19V) |
| Operating Temperature | 0°c to 50°c |
