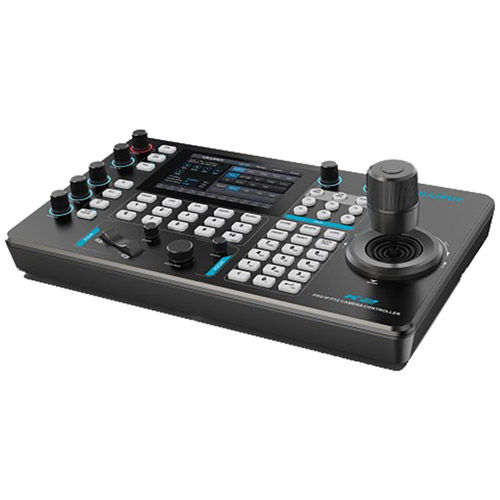

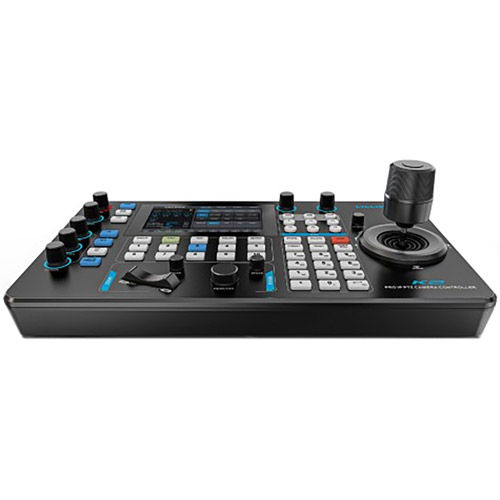

Lilliput K2 Touchscreen PTZ Camera Joystick Controller

The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput's multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.

Key Features:

• 5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
•  Supports real-time preview camera in 5″ screen
•  Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
•  Control the system via IP, RS-422, RS-485 and RS-232 interface
•  Automatically assigns IP addresses to devices for quick setup
•  Manage up to 100x independent IP cameras on a single network
•  6 user-assignable buttons for quick access to functions
•  Quickly control exposure, iris, focus, pan, tilt and other functions
•  Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs

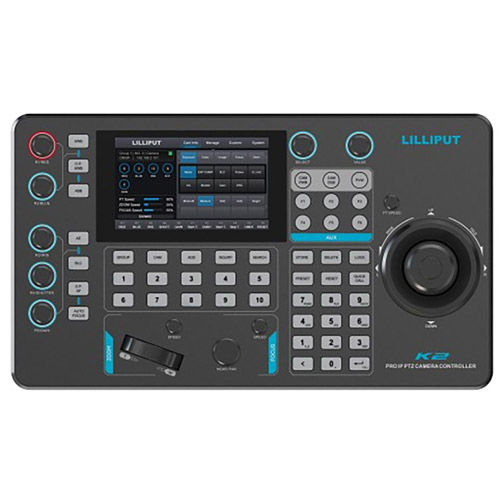

5 Inch Touch Screen

Camera Menu Control

The PTZ camera keyboard controller features a 5-inch touchscreen that enables direct on-screen configuration of common camera menu parameters as well as monitoring camera status in real time.

Real-time Preview of Your Camera

The controller supports decoding under NDI, RTSP and ONVIF protocol which allows simultaneous real-time preview of the camera video streams on the 5-inch screen and adjust your control accordingly.

Camera Control Protocol

The controller has a variety of control interfaces including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating Protocol by NDI, VISCA, VISCA-IP and Pelco P&D, as well as ONVIF.

Track Recording and Playback

This PTZ camera controller supports track loop function which allows you to record camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.

Sync Controller with switcher Via Tally GPIO

Equipped with GPIO, the controller can seamlessly integrate with switchers and tally system, enabling synchronized camera and video selection and simplifying your operations.

Power-over-Ethernet (PoE)

Control up to total of 100 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.

1x RS-232 & 4 x RS-485 /422 Control Interfaces

RS-232, RS-422 and RS-485 communication support protocols such as PELCO-D, PELCO-P and VISCA,. Each serial port can connect up to 7 cameras under the Visca protocol.

IP Control Interface

IP control is a very intelligent and convenient control mode. With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports NDI (Optional), ONVIF and Visca - IP. K2 enables user to easily control up to 100 IP cameras.

Ergonomic Bracket for Optimal Control

The controller is equipped with an ergonomically designed bracket that enhances your control experience and viewing angle of the screen.

Connection Diagram

Adopt RS-232, RS-422, RS-485 and IP(RJ45) multiple interface control signal, up to 100 cameras can be connected.
The following application workflow shows how to control multiple cameras through IP Interface through the PTZ controller.

Application Fields

The controller can be widely used in various field events, such as church, concert, education, interviews, sports live broadcast, other live broadcast activities.
