Overview

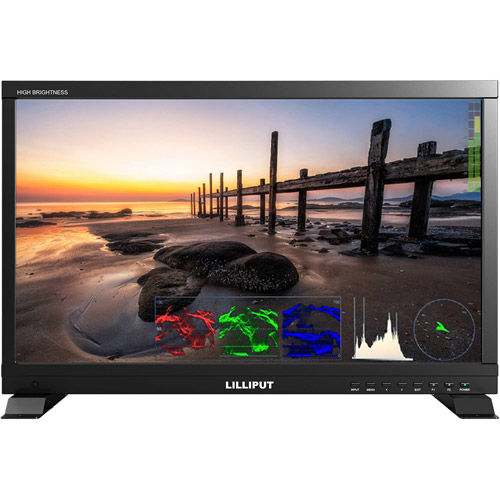

PVM220S-H 21.5" High-Brightness Broadcast Monitor
LILLIPUT PVM220S-H is a professional high brightness broadcast monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – the PVM220S-H features 3G SDI and HDMI 2.0 input connections for broadcast quality monitoring. Adding value to the system, it also features accurate waveform and vector functions - which can provide strong support for capturing accurately the color of your images.
HDR
SUPPORT ST2084 300/1000/10000/HLG
Making lighter and darker details to be displayed more clearly. Under 1000 nits brightness, it can show the effect of 1 + 1 >= 2
1000 NITS
For Daytime with Strong Sunlight
The high brightness screen makes it possible to see the image clearly even when it is exposed to sunlight.
3D LUT
Import LUT tables via USB to dye your scenes with different colors. It can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 defualt logs and 6 user logs.
Optional Battery Plates

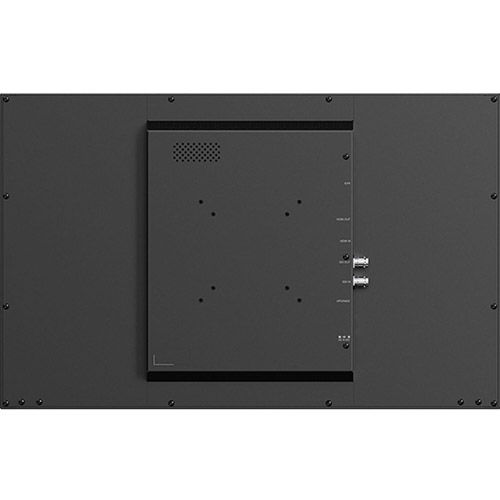

The back of broadcast monitor is equipped with VESA 75mm/100mm installation options, which is compatible with the installation of most light stands and battery plates. The battery plate can be selected from V-lock battery plate and Anton Bauer battery plate.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
PVM220S-H 21.5" High-Brightness Broadcast Monitor |
|
|---|---|
Display |
|
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Look Up Table Support | 3D LUT (.cube format) |
| Resolution | 1920 x 1080 |
| Technology | Calibration to Rec.709 with optional calibration unit |
| Viewing Angle | 178°/178°（H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| Screen Size | 21.5" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
Supported Formats |
|
| HDMI Formats Supported | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| SDI Formats Supported | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
Monitor Specification |
|
| Video Inputs | SDI 1×3G, 1X HDMI 2.0 |
| Video Outputs | SDI 1×3G, 1X HDMI 2.0 |
Audio In / Out (48 kHz PCM Audio) |
|
| Built In Speakers | 1 |
| Ear Jack | 1x 3.5mm |
| HDMI Audio Frequency | 8ch 24-bit |
| SDI Audio Frequency | 2ch 48kHz 24-bit |
Size |
|
| Dimensions | 508mm × 321mm × 47mm |
| Weight | 4.7 kg |
Power |
|
| Compatible Batteries | V-Lock or Anton Bauer Mount |
| Input Voltage | DC 9-24V |
| Power Consumption | ≤53W (15V) |
Environment |
|
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
