Overview

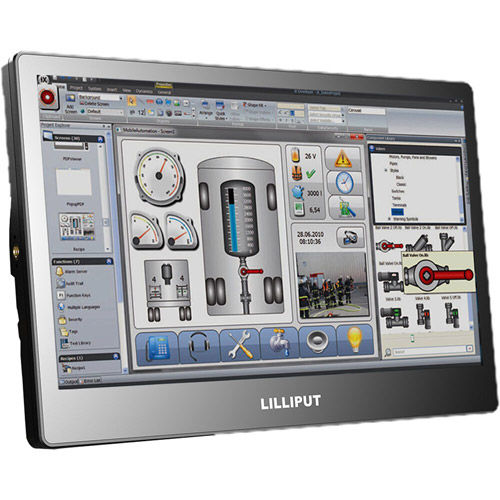

FA1330/T(Touch) 13.3" Touchscreen Monitor
FA1330 with a full lamination screen, it comes with 13.3″ 1920×1080 resolution and capacitive touch function(optional). And suitable for a wide range of outdoor industrial and commercial applications in the market, such as POI/POS, Kiosk, HMI and all kinds of heavy-duty industrial field equipment systems. There are different install way for the touch screen monitor, Whether as a desktop device for control centers, as a built-in unit for control consoles or as PC-based visualization and control solutions requiring a spatially divided setup of the operator panel and the industrial PC or server, and the optimal solution – as a stand-alone solution or also with several control stations in extensive visualization and control solutions.
10-Point Capacitive Touch
High Quality Sensitivity
The optional industrial-grade touch screen supports 10-point capacitive touch and thin-glove touch. Also, it will not be affected even when exposed to small amount of water droplets.

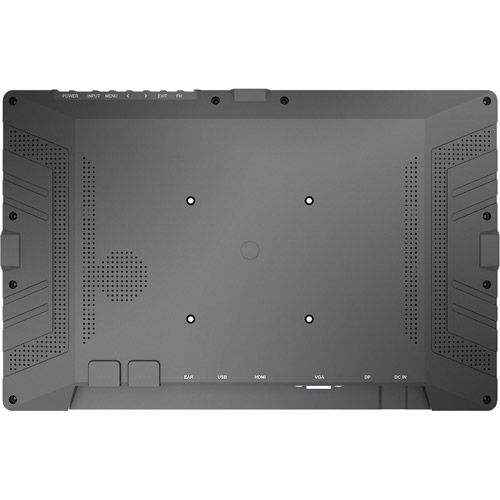

Interfaces of Monitor
HDMI/VGA/DP Interfaces
Equipped with three different video signal interfaces to meet different types of equipment. In addition to the monitor's built-in speakers, people can also listen to audio through earphone.
VESA 75mm Bracket
Foldable Desktop Stand (Optional)
With universal VESA 75mm compatible mounting, people can try different mounting brackets for different usage environments. Also, there are 1/4" mounting screw ports on both sides of the body, providing more options for integrated solutions.
Applications
Industrial-grade touch monitor for a wide range of HMI applications.
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
FA1330/T 13.3" Full HD Touchscreen Commercial Monitor |
||
|---|---|---|
Display |
Touch Screen | Capacitive touch |
| Panel | 13.3” LCD | |
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300 nits | |
| Contrast | 800:1 | |
| Viewing Angle | 170°/ 170°(H/V) | |
Signal Input |
HDMI | 1 |
| VGA | 1 | |
| DP | 1 | |
| USB | 1 (For Touch) | |
Support Formats |
VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
| DP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
Audio In/Out |
Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Built-in Speakers | 2 | |
Power |
Input Voltage | DC 7-24V |
| Power Consumption | ≤12W (12V) | |
Environment |
Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C | |
Other |
Dimension (LWD) | 320mm × 208mm × 26.5mm |
| Weight | 1.15 kg (2.5 lbs) | |
