- Webcode: 488867 • Mfr: Q23-8K-VBP
Product Highlights
- 23.8" Broadcast Studio Monitor
- 3840 x 2160 Max. Resolution
- 300 cd/m² Brightness
- HDMI 2.0 / 4x 12G-SDI / 12G SFP+ Video Input
- HDMI 2.0 / 4x 12G-SDI Video Loop Output
- 1000:1 Contrast Ratio
- 178° View Angle
- V Mount
Option:

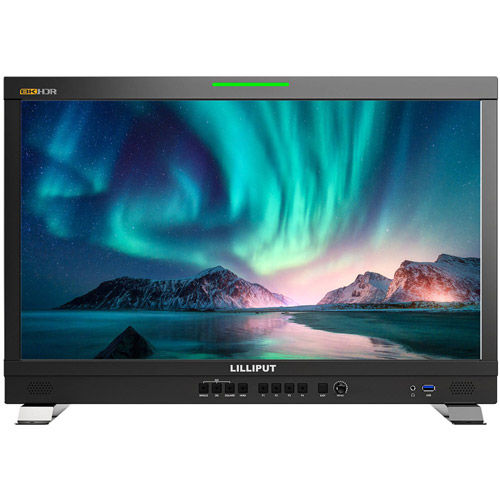

Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broa...- Toronto Special Order
- Ottawa Special Order
- Mississauga Special Order
- Calgary Special Order
- Edmonton Special Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor
LILLIPUT Q23-8K is a 23.6 inch high performance monitor with 4K physical resolution. This studio production monitor is features four 12-SDI connections and supports up to 8K 60Hz video signals. It comes with rich features, including 3D-LUT, waveform and quad-split, allowing four signals to be displayed simultaneously, specially designed for professional photographer, videographer or film maker. It also support remote control via RS422, GPI, LAN port.
8K 12G-SDI SIGNAL
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
Accurate Colour Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.
Quad Split Multiview
In Quad-Split Multiview mode, any input signals can be selected and changed among 12G-SDI, HDMI2.0 and 12G-SFP+ Moreover, images can be differentiated with colorful borders to enhance the senses of monitoring.
Easy-to-use
F1~F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.
What's Included
Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)Gold Mount Battery Plate
Power Adapter
VESA Mount Plate
Base Bracket
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor |
||
|---|---|---|
Display |
Panel | 23.8″ |
| Max. Resolution | 3840*2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300 cd/m² | |
| Contrast | 1000:1 | |
| Viewing Angle | 178°/178°（H/V) | |
| HDR | ST2084 300/1000/10000/HLG | |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | |
| Look up Table(LUT)support | 3D LUT (.cube format) | |
| Technology | Calibration to Rec.709 with optional calibration unit | |
Video Input |
SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) | |
| HDMI | 1×HDMI 2.0 | |
Video Loop Output |
SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI | 1×HDMI 2.0 | |
Supported Formats |
SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
Audio In/Out (48kHz PCM Audio) |
SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
Remote Control |
RS422 | In/out |
| GPI | 1 | |
| LAN | 1 | |
Power |
Input Voltage | DC 12-24V |
| Power Consumption | ≤60W (15V) | |
| Compatible Batteries | Gold Mount | |
| Input Voltage(battery) | 14.8V nominal | |
Environment |
Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ | |
Other |
Dimensions | 567mm × 376.4mm × 45.7mm |
| Weight | 7.4 kg (16.3 lbs) | |
