Product Highlights
  • ≥95 CRI (Ra)
  • 2500K~7500K Colour Temperature
  • ≥80 m (262.5') Operating Range
  • 12-28.8 VDC Power Source
  • OLED Display
  • 45° Beam Angle
  • V Mount
Amaran F22c RGB LED Flexible Light Mat (2x2', V-Mount) w/Lantern for F22 LED Lights Amaran F22c RGB LED Flexible Light Ma...
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: In Stock
Product is In Stock in our Warehouse or in one of our store locations. We will confirm stock is available and process your order. If the available stock is sold before your order is processed, you will receive an email from us.
In-store
  • Available in Calgary
Vistek Locations
  • Toronto Available for Order
  • Ottawa Available for Order
  • Mississauga Available for Order
  • Calgary In Stock
  • Edmonton Available for Order
Please call and verify availability at the store as stock changes daily.

For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.

Overview

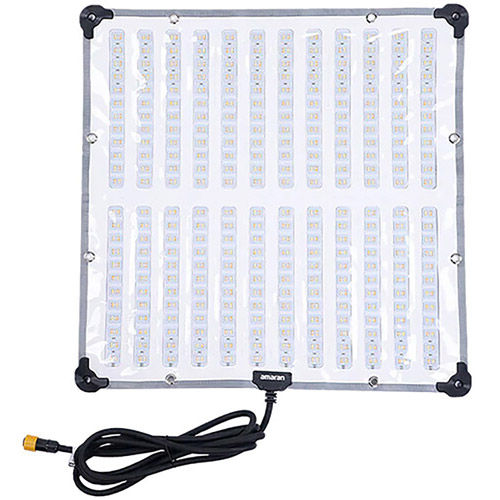

F22C 2'x2' RGBWW LED Flexible Fabric Light

Full-Color Flexible Mat

The amaran F22c is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.

Key Features:

  • 200W Output 2’x2’ RGBWW Flexible LED Mat
  • 240W Max Power Draw
  • 6,420+ lux @ 1 meter (5600K)
  • HSI Full Color Control with Tunable Green-Magenta Adjustment (Plus/Minus Green)
  • Tunable CCT from 2,500K to 7,500K

2X2 Form Factor

As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ form factor allows the F22c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

Full Color Control

With its integrated RGBWW chipset, the F22c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.

All-New X Bracket

The F22c now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.

Power Flexibility

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

Redefined Soft Source

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22c can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

Sidus Link App

For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22c. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.

Professional Controls

In addition to controlling your lighting design from Sidus Link, the F21c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.

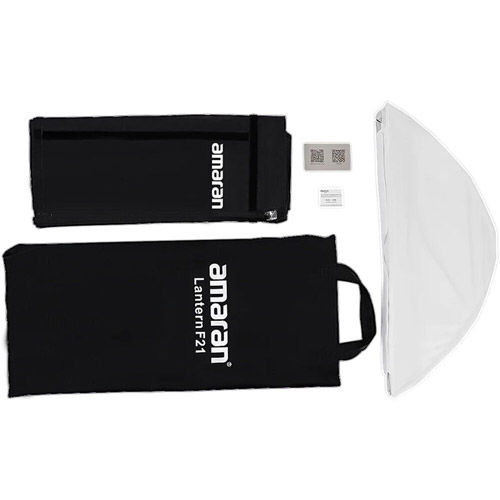

Lantern For F22 LED Lights

Lantern Features:


  • Lightweight Omnidirectional Soft Light Modifier for amaran F22x and F22c Flexible Lights
  • Included Removable Hoop-and-Loop Fabric Light Control Skirt with Reflective Inner Lining to Eliminate Light Spill
  • Hook-and-Loop Quick Mounting Design
  • 2.5 Stop Diffusion Cloth to Soften Output
  • Lightweight Design (962 g / 2.12 lbs)
  • Included Carrying Bag

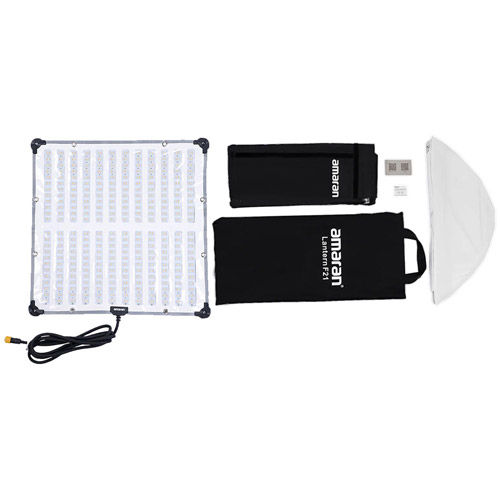

What's Included

F22c RGBWW 2x2 LED Flexible Light Mat
F22c Control Box
F22c Head Cable Extension (3m)
F22 Support Bracket
Tilting Stand Mount
F22 Softbox Frame
F22 Diffusion Cloth 1 (1/2 Grid Cloth)
F22 Diffusion Cloth 2 (2.5 Stop)
F22 Light Control Grid
AC Power Supply
AC Power Cable
F-Series Light Carrying Case
Lantern For F22 LED Lights
2.5 Stop Diffusion
Light Control Skirt
Carrying Bag

For Québec Residents – Disclosure Under the Consumer Protection Act

In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.

Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.

Click here for more info.

Reviews

Product Specifications

F22C 2x2' RGBWW LED Flexible Fabric Light

CCT 2500K~7500K
TLCI ≥97
CRI (Ra) ≥95
CQS ≥96
TM-30 RF (Average) 94
TM-30 RG (Average) 102
SSI (P3200) ≥83
SSI (D56) ≥74
Colour Chipset Red, Green, Blue, Warm White, Cool White
Beam Angle (Control Grid) 45°
Max. Power Output ≤200W
Max. Power Consumption ≤240W
Operating Current 5A
AC Power Supply 48V DC
D-Tap Battery 12-28.8V DC
Battery Compatibility 16.8V, 26V, 28.8V full power output
DC Input (3m) DC Self-locking
AC Power Cable Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature -10°C ~ 40°C / -4°F ~ 113°F
Control Methods On-board, Sidus Link App, DMX
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range ≥80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED
Fixture Cooling Method Natural Dissipation
Control Box Cooling Method Natural Dissipation
Umbrella Holder Yes
Soft Box Yes
Mounting 1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70) 50,000 Hours
Estimated Color Shift Over Lifetime (CCT) 2% over 6,000 Hours
Certifications CE, FCC, cTUVus, KC, NCC, ROHS
Max. Light Output 7,080 lux @ 1m
