- Webcode: 493482 • Mfr: Evoke 5C 8KIT
Product Highlights
- 98/98 CRI (Ra)/TLCI
- 496 lux @1m (5600K) Illumination
- 1000K-20000K (G/M±200) Colour Temperature
- 6W Power
- 3.7V/1300mAh Battery
- 25° Beam Angle
- 8-Light Kit

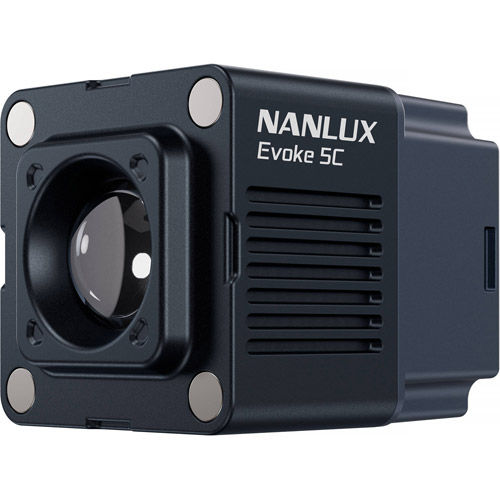

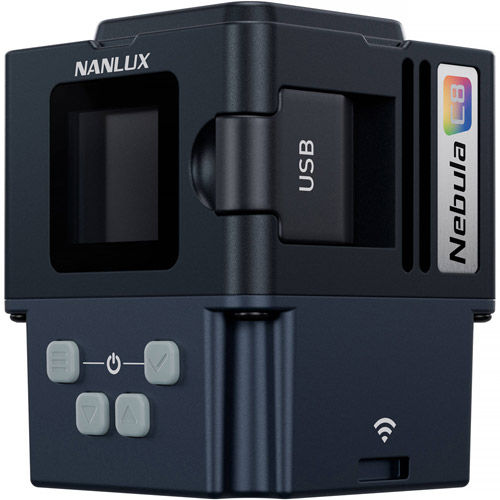

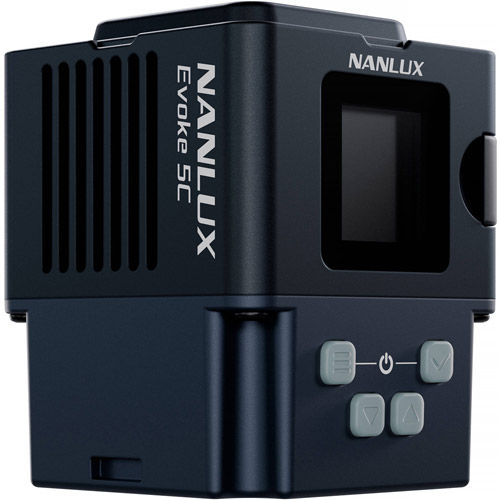

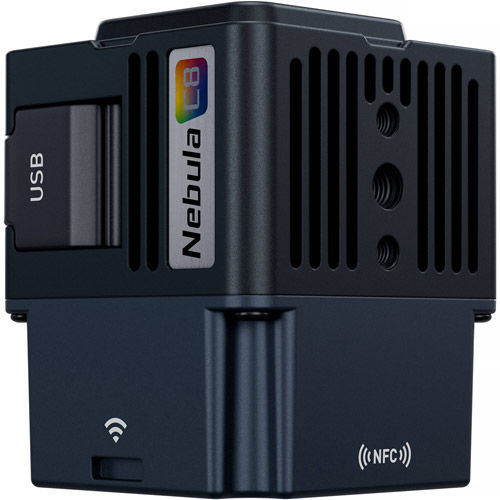

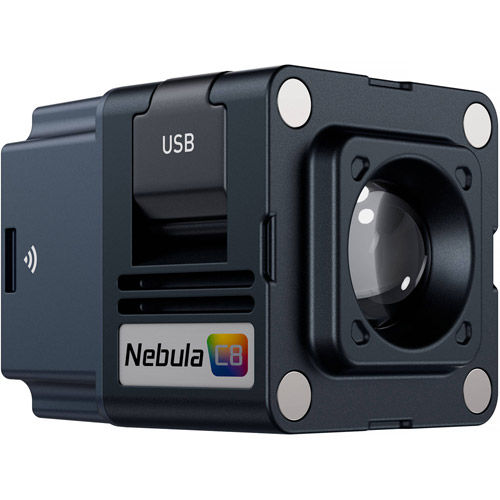

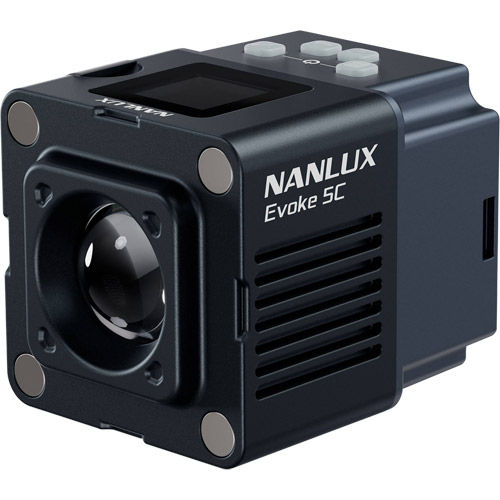

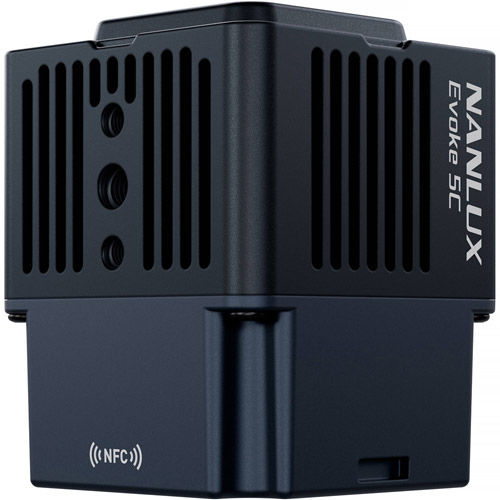

Nanlux Evoke 5C LED Full-Color Spot Light 8-Light Kit
Nanlux Evoke 5C LED Full-Color Spot L...- Toronto On Order
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
For Québec residents: See our Bill 29 Disclosure at the bottom of this page or click here for more info.
Overview
Evoke 5C
Tiny. Limitless.
Welcome a new member to the Evoke family Evoke 5C, the world’s smallest professional 8-colour spotlight, designed for flexible on-set lighting from subtle fill and accent lighting to creative in-frame practicals.
Key Features:
- Handy and Versatile
- Extensive Accessories
- Innovative Light Engine
- Superior Light Quality
- Built-In Battery
- Flexible Power Options
- Dustproof and Waterproof
- Ready for Underwater
- Multiple Control Methods
Handy and Versatile
5,970 lux @ 0.3 m (5600K, bare light). Measures just 2.2 × 1.73 × 1.77 in and weighs only 160 g / 5.64 oz, making it exceptionally portable and quick to deploy.
Extensive Accessories, Maximum Versatility
Magnetic mounts on both front and back, a 1/4”-20 mount with anti-twist design, and a USB-C port support 14 dedicated modifiers and accessories for light shaping, mounting, power, and control.
Innovative Light Engine, Superior Light Quality
Powered by the Nebula C8 Colour Light Engine, featuring a wide CCT range (1000K–20,000K, G/M ± 200), accurate colour rendering, and rich colour saturation.
Includes 7 lighting modes and 15 customizable effects provide added creative flexibility.
Built-In Battery & Flexible Power Options
160 minutes runtime at 1% brightness. Supports USB-C power, power banks, Battery Grip, and E27 Socket Adapter, with charging in the 8-Light Kit Case.
Dustproof and Waterproof, Ready for Underwater
IP67-rated for reliable performance in challenging environments. Supports underwater use up to 1 meter for 30 minutes, or up to 30 meters with the optional IP68 Underwater Housing.
Multiple Control Methods
On-board control, NANLINK App, LumenRadio CRMX, DMX/RDM, and NFC for seamless integration into professional lighting workflows.

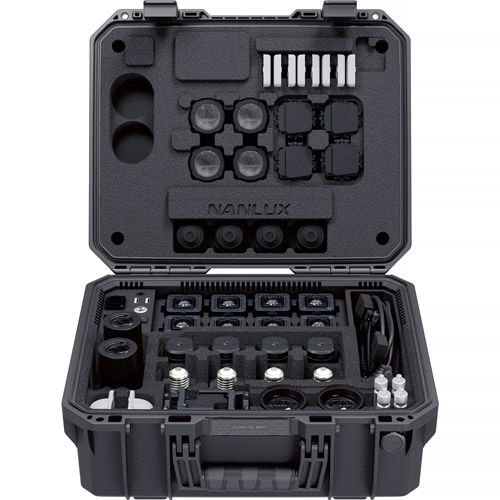

What's Included
Evoke 5C RGB LED Spotlight8x Magnetic Diffuser
4x Magnetic Soft Dome
8x Magnetic CRMX Module
8x Magnetic Thermal Shield
4x Magnetic Barndoors
4x Magnetic Snoot
4x Magnetic Fresnel Lens
4x Magnetic Battery Grip
4x 5/8" Baby Pin with 1/4"-20 Thread
4x Magnetic E27 Socket Adapter
4x Magnetic Yoke
2x Projection Attachment (15-35°)
8x Gobo
2x Magnetic Spot Beam Lens
AC Power Cable (4.9')
D-Tap Cable
GUTEK T-230 Charging Protector Case (Black)
For Québec Residents – Disclosure Under the Consumer Protection Act
In compliance with Bill 29, Vistek does not guarantee the availability of replacement parts, repair services, or maintenance or repair information for products sold by Vistek.
Coverage provided through applicable manufacturer warranties, if any, remains in effect. Customers are encouraged to contact the manufacturer directly for information regarding the availability of replacement parts, repair services, or maintenance information.
Reviews
Product Specifications
Evoke 5C |
|
|---|---|
| Rated Power | 6W |
| Input Voltage/Current | DC5V/2A |
| Beam Angle | 25° |
| LED Light Engine | Nebula C8 Light Engine (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo) |
| CCT | 1,000K-20,000K (G/M±200) |
| CRI | Average 98 |
| TLCI | Average 98 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI (3200K) | 86 |
| SSI (5600K) | 78 |
| Dimming | 0%-100%, by 1% increment |
| IP Rating | IP67 |
| Control | On-board, Nanlink App, DMX/RDM*, LumenRadio CRMX**, NFC (*via USB-C to DMX Adapter Cable, **via Magnetic CRMX Module) |
| Special Effect | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
| Battery Capacity | 3.7V/1300mAh |
| Battery Runtime | 100% brightness: 50 mins 1% brightness: 2 hours 36 mins |
| Certification | CE, UKCA, RoHS, PSE Circle, BIS, FCC-ID, NCC, UN38.3 Transportation Test, Battery KC Certification, IP67, VOC |
| Dimensions | Light Fixture: 56 × 44 × 45 mm (2.2 × 1.73 × 1.77") USB-C Cable: 1 m (39.37") AS-MD-EV5C Magnetic Diffuser: 44 × 44 × 11 mm (1.73 × 1.73 × 0.433") YK-EV5C Magnetic Yoke: 67 × 42 × 69 mm (2.64 × 1.65 × 2.72") AS-MTS-EV5C Magnetic Thermal Shield: 48 × 48 × 31 mm (1.89 × 1.89 × 1.22") Carrying Bag: 135 × 50 × 75 mm (5.31 × 1.97 × 2.95") |
| Weight | Light Fixture: 0.16 kg (0.353 lbs) USB-C Cable: 0.028 kg (0.0617 lbs) AS-MD-EV5C Magnetic Diffuser: 0.008 kg (0.0176 lbs) YK-EV5C Magnetic Yoke: 0.062 kg (0.137 lbs) AS-MTS-EV5C Magnetic Thermal Shield: 0.009 kg (0.002 lbs) Carrying Bag: 0.076 kg (0.168 lbs) |
Illumination (lux / fc) |
|||
|---|---|---|---|
Light Only |
|||
| Distance | 0.3M | 0.5M | 1M |
| 3200K | 5480 lux / 509 fc | 1835 lux / 170 fc | 448 lux / 42 fc |
| 5600K | 5970 lux / 555 fc | 2026 lux / 188 fc | 496 lux / 46 fc |
| R | 929 lux / 86 fc | 308 lux / 29 fc | 73 lux / 7 fc |
| G | 8080 lux / 751 fc | 2755 lux / 256 fc | 671 lux / 62 fc |
| B | 1174 lux / 109 fc | 404 lux / 38 fc | 99 lux / 9 fc |
With Magnetic Fresnel Lens (25°) |
|||
| Distance | 0.3M | 0.5M | 1M |
| 3200K | 12570 lux / 1168fc | 3630 lux / 337 fc | 750 lux / 70 fc |
| 5600K | 13830 lux / 1285 fc | 4020 lux / 373 fc | 830 lux / 77 fc |
| R | 2120 lux / 197 fc | 595 lux / 55 fc | 123 lux / 11 fc |
| G | 18800 lux / 1747 fc | 5390 lux / 501 fc | 1127 lux / 105 fc |
| B | 2720 lux / 253 fc | 779 lux / 72 fc | 164 lux / 15 fc |
With Magnetic Fresnel Lens (35°) |
|||
| Distance | 0.3M | 0.5M | 1M |
| 3200K | 7010 lux / 651 fc | 2296 lux / 213 fc | 518 lux / 48 fc |
| 5600K | 7860 lux / 730 fc | 2533 lux / 235 fc | 580 lux / 54 fc |
| R | 1170 lux / 109 fc | 385 lux / 36 fc | 86 lux / 8 fc |
| G | 10410 lux / 967 fc | 3450 lux / 321 fc | 796 lux / 74 fc |
| B | 1511 lux / 140 fc | 505 lux / 47 fc | 114 lux / 11 fc |
With Magnetic Spot Beam Lens |
|||
| Distance | 0.5M | 1M | 2M |
| 3200K | 9710 lux / 902 fc | 2548 lux / 237 fc | 604 lux / 56 fc |
| 5600K | 10770 lux / 1001 fc | 2828 lux / 263 fc | 677 lux / 63 fc |
| R | 1622 lux / 151 fc | 416 lux / 39 fc | 100 lux / 9 fc |
| G | 14910 lux / 1385 fc | 3870 lux / 360 fc | 928 lux / 86 fc |
| B | 2176 lux / 202 fc | 557 lux / 52 fc | 132 lux / 12 fc |
With Projection Attachment (15°) |
|||
| Distance | 0.5M | 1M | |
| 3200K | 3050 lux / 283 fc | 656 lux / 61 fc | |
| 5600K | 3380 lux / 314 fc | 726 lux / 67 fc | |
| R | 515 lux / 48 fc | 111 lux / 10 fc | |
| G | 4610 lux / 428 fc | 974 lux / 90 fc | |
| B | 682 lux / 63 fc | 145 lux / 13 fc | |
With Projection Attachment (35°) |
|||
| Distance | 0.5M | 1M | |
| 3200K | 1156 lux / 107 fc | 207 lux / 19 fc | |
| 5600K | 1278 lux / 119 fc | 2529 lux / 235 fc | |
| R | 195 lux / 18 fc | 35 lux / 3 fc | |
| G | 1724 lux / 160 fc | 312 lux / 29 fc | |
| B | 255 lux / 24 fc | 46 lux / 4 fc | |
With Magnetic Snoot |
|||
| Distance | 0.5M | 1M | |
| 3200K | 955 lux / 89 fc | 261 lux / 24 fc | |
| 5600K | 1050 lux / 98 fc | 287 lux / 27 fc | |
| R | 163 lux / 15 fc | 44 lux / 4 fc | |
| G | 1427 lux / 133 fc | 391 lux / 36 fc | |
| B | 205 lux / 19 fc | 56 lux / 5 fc | |
With Magnetic Diffuser |
|||
| Distance | 0.3M | 0.5M | |
| 3200K | 277 lux / 26 fc | 89 lux / 8 fc | |
| 5600K | 303 lux / 28 fc | 97 lux / 9 fc | |
| R | 48 lux / 4 fc | 15 lux / 1 fc | |
| G | 411 lux / 38 fc | 131 lux / 12 fc | |
| B | 59 lux / 5 fc | 18 lux / 2 fc | |
With Magnetic Soft Dome |
|||
| Distance | 0.3M | 0.5M | |
| 3200K | 220 lux / 20 fc | 67 lux / 6 fc | |
| 5600K | 242 lux / 22 fc | 74 lux / 7 fc | |
| R | 37 lux / 3 fc | 11 lux / 1 fc | |
| G | 327 lux / 30 fc | 101 lux / 9 fc | |
| B | 48 lux / 4 fc | 14 lux / 1 fc | |
