Product Highlights
  • SDI Video & Analog Audio Capture Box
  • For Streaming & Videoconferencing
  • 3G-SDI Input
  • Loop-Through Output
  • Up to 1080p60 Video
Option:
3G-SDI
HDMI
Datavideo CAP-1 SDI to USB 3.0 Capture Box Datavideo CAP-1 SDI to USB 3.0 Capture B...
FREE SHIPPING Available
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

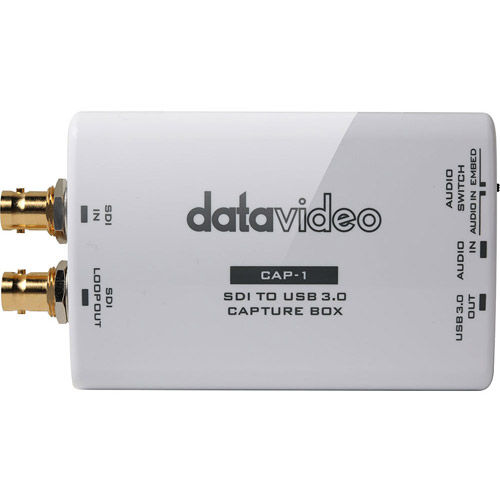

Cap-1 | SDI to USB 3.0 Capture Box

CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing. The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

USB 3.0 Interface

No external power is needed. Power source from USB connection.

Plug-and-Play

Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform

Compatible with various operating systems

  • Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
  • Linux: VLC, OBS
  • Mac OS X: OBS, Quicktime player, VLC, Facetime

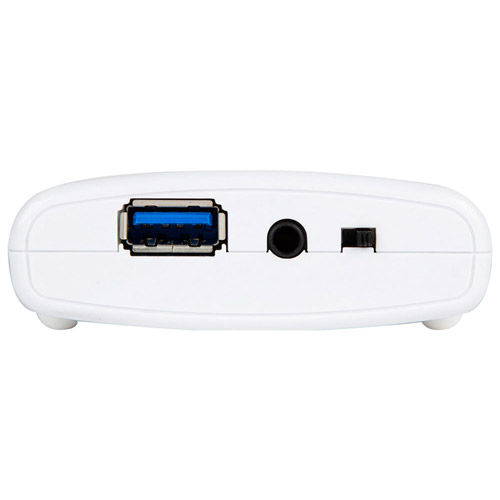

Stereo line in external audio

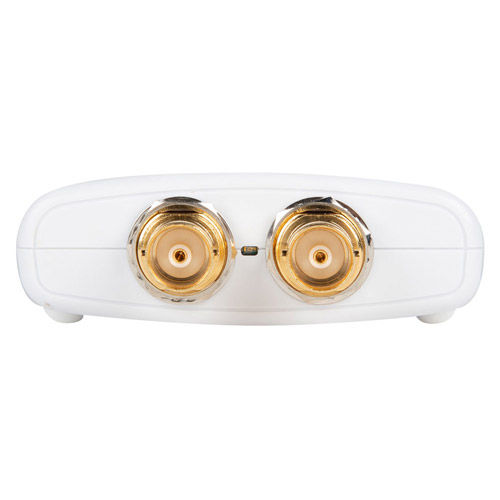

SDI Loop-out for monitoring or recording the video source. Switched as SDI embedded audio or external Mini-Jack audio.

What's Included

SDI to USB 3.0 Capture Box
USB Type-A Cable

Reviews

Product Specifications

CAP-1 SDI to USB 3.0 Capture Box

Input

1x HD/3G-SDI

Output

1x USB 3.0 (Micro B)
1x SDI loopthrough

Input Video Bandwidth

150MHz (pixel clock rate)

Output Video Bandwidth

Up to 350Mbps (USB)

Supported Input /Output Video Formats

1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1920 x 1080i 60/59.94/50 (de-interlaced out)
1280 x 720p 60/59.94/50

Audio Input

SDI Embedded Audio & 3.5 mm stereo in

Audio Format

2-Channel, 16-bit PCM

Recording Video Format

YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

Via USB Port

Software Compatibility

Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime

Supported OS

Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04

Power Supply

Via USB

Power Consumption

3W

Operation Temperature

0~40°C

Storage Temperature

-20~60°C

Humidity

20~90% RH

Minimum System Requirement
  • Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
    Note: The driver is required for Windows 7 OS
  • OS X (10.10 or above)
  • Linux Ubuntu 14.04
  • PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
  • Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher
Dimension (LxDxH)

121 x 68 x 23 mm
