Product Highlights
- Home Office / Workstation Compatibility
- Front Panel Multi-Colour LED Display
- TRS / USB Type-C / 3.5mm TRS Mini Jack Connection
- PC / ABS Material Construction
- 100-240 VAC Power Source
- 60 W Max. Power

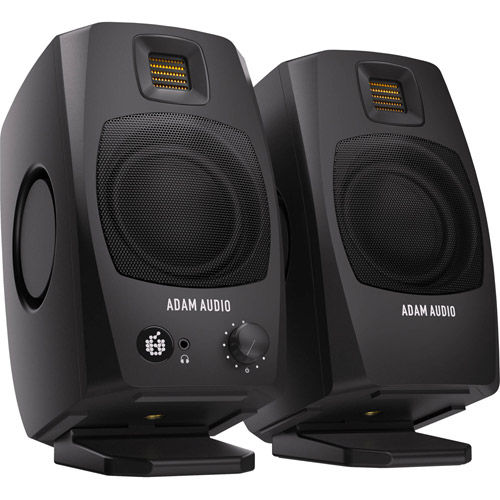

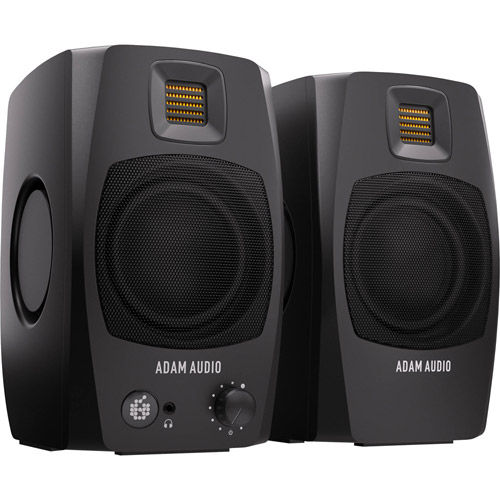

Adam Audio D3V Active Desktop Monitor System - Black (Pair)
Adam Audio D3V Active Desktop Monitor Sys...- Available in Toronto
- Toronto In Stock
- Ottawa Available for Order
- Mississauga Available for Order
- Calgary Available for Order
- Edmonton Available for Order
Overview
D3V
STUDIO SOUND. DESKTOP SIZE.
Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.
The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

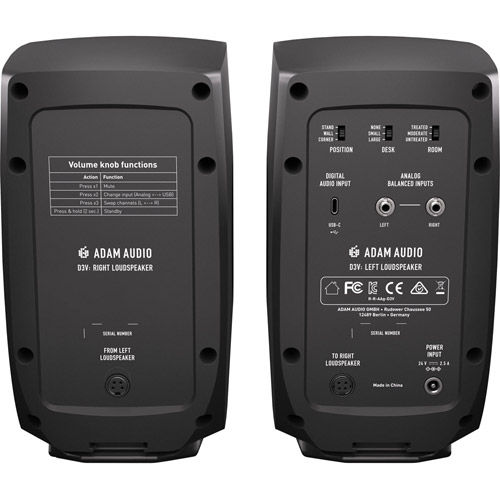

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points (3/8″) for perfect positioning in any environment. Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.
Explore the technology
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the D3V.
DSP Room Adaption
The D3V features DSP-powered 3-way switches to address common acoustical issues arising from speaker placement.
What's Included
Left Speaker (L)Right Speaker (R)
Link Cable to Connect Left To Right Speaker
USB-C to USB-C Cable
USB-C to USB-A Adapter
Mains Cable
Power Supply Block
2x Padded Monitor Stands
6x Stick-On Pads
Reviews
Product Specifications
D3V Active Desktop Monitor System |
|
|---|---|
| Display | Front panel multi-color LED |
| Cabinet Design | Dual passive radiator |
| Cabinet Material Construction | PC-ABS |
| Mounting Options | Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet for microphone stand |
| Power Consumption | 60 W, 5 W, 0.3 W |
| AC Input Voltage | 100 – 240 V, 50/60 Hz |
| Power Rating | 60 W max |
| Operating Conditions | -10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing |
| Weight | 3.58 kg total (7 lbs 14 oz total) |
| Dimensions | 200 mm (Height with stand: 240 mm) x 115 mm x 150 (7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)” |
| Length of Connection Cable | 2 metres (78.74 inches) |
Audio Connectors |
|
| Analog | TRS |
| Input Impedance | 47 kOhm |
| Max. Input Level | +9 dBu |
| Digital | USB Type C |
| Digital Audio Signal | Class-compliant USB 1.1 |
| Headphones Output Connector | 3.5 mm TRS mini-jack |
| Headphones output impedance | 32 Ohm |
Amplification |
|
| Woofer |
|
| Tweeter |
|
Control Options |
|
| Input Sensitivity | 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting |
| Level | Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB |
| Front panel knob press functions | Mute, standby, input select, channel swap, firmware update mode |
| Input Selection | Analog, USB-C |
| Channel Order | Normal, L/R swapped |
| Position (Bass) | 0, -3, -6 dB |
| Desk (Low-mid and Mid) | 0, -3, -6 dB and 0, -2, -4 dB |
| Room Acoustics (Treble) | 0, -1.5, -3 dB |
Acoustics |
|
| Frequency Response @ -3 dB | 48 – 22.6 kHz |
| Frequency Response @ -6 dB | 45 – 23.2 kHz |
| Crossover Frequencies | 4.0 kHz |
| Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS) | 94 dB SPL |
| Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak) | 97 dB SPL |
| Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS) | 80 dB SPL |
| Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak) | 84 dB SPL |
| Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed) | 98 dB SPL |
| Dolby DARDT max SPL in full space | 103 dB SPL |
| Dolby DARDT max SPL in full space (bass managed) | 106 dB SPL |
Drivers |
|
| Woofer |
|
| Tweeter |
|
Signal Processing |
|
| AD Converter | 24-bit (via TRS inputs) |
| USB Bit-Depth | 16-bit (via USB-C input) |
| Internal Sample Rate | 48 kHz |
| Protection | Independent peak and thermo limiters for each driver, and amplifier thermo limiters |
